ABOUT THE
BEKA PICO SYSTEM

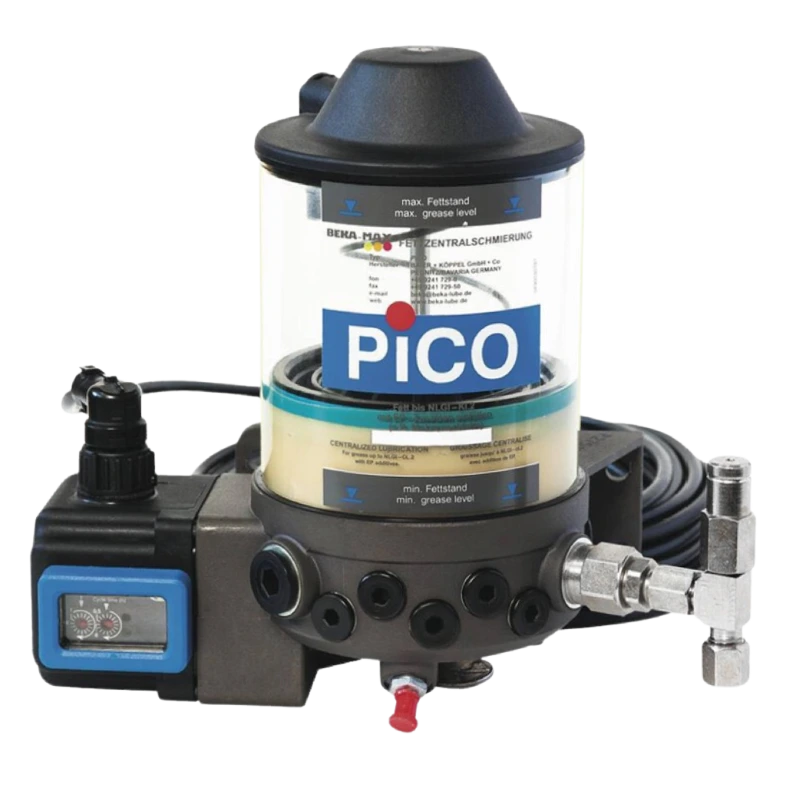

The BEKA Pico lubrication system by Groeneveld-BEKA is a cutting-edge solution for machinery lubrication, engineered to offer a compact and effective option for a diverse range of machinery types.
- Innovative multi-line technology ensures precise and controlled distribution of lubricants to all machine components.
- Highly adaptable, featuring a variety of customisable settings to meet the unique requirements of different machines and applications.
- Space-saving design allows for easy installation in confined spaces and various machinery types.
- High-performance capabilities, delivering up to 280 bar of pressure to cater to even the most challenging machinery demands.
- User-friendly interface with a touchscreen display for simple programming and monitoring of system settings.
- Dependable operation with automatic shut-off valves, high-pressure relief valves, and advanced monitoring systems to prevent breakdowns and downtime.
- Environmentally conscious, utilising minimal lubrication to sustain smooth machinery operation and reduce waste.
Download PDF: Manual and Specifications
OVERVIEW OF THE
BEKA PICO PUMP

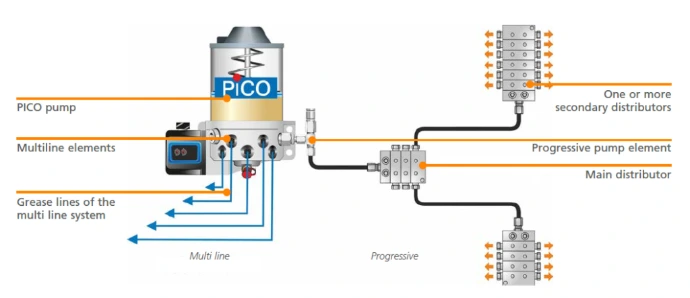

Working Principles
When the pump is activated, grease is pushed through the pump elements. The pump elements then distribute the grease to main and secondary progressive distributors. The multi line elements deliver the grease directly to the lubrication points.
Technical Information BEKA Pico Pump
Pump Type | Electric |
Supply Voltage | 12 or 24v |
No. of outputs | Max. 10, 2 progressive and 8 multi-line |
Maximum operating pressure | 200 bar (2900 psi) at multi-line system 280 bar (4000 psi) at progressive system |
Delivery volume | Max. 0.12cc per stroke/outlet |
Grease class | Greases up to NLGI-2 |
Reservoir Capacity | 1, 2 Litre |
Temperature range | -20 up to +70 C (-4 up to 158 F) |
Protection class | IP65 |
Pump Elements
System | Pump Elements | Metering Volume |
Multi-line | PE 5 PE 10 PE 15 PE 25 PE 50 | 0.005 cc/stroke 0.010 cc/stroke 0.015 cc/stroke 0.025 cc/stroke 0.050 cc/stroke |
Progressive | PE 120 F PE 120 FV With/without pressure limiting valve | 0.120 cc/stroke 0.04 up to max. 0.12 cc/stroke (adjustable) |
