ABOUT THE

BEKA ZEPTO SYSTEM

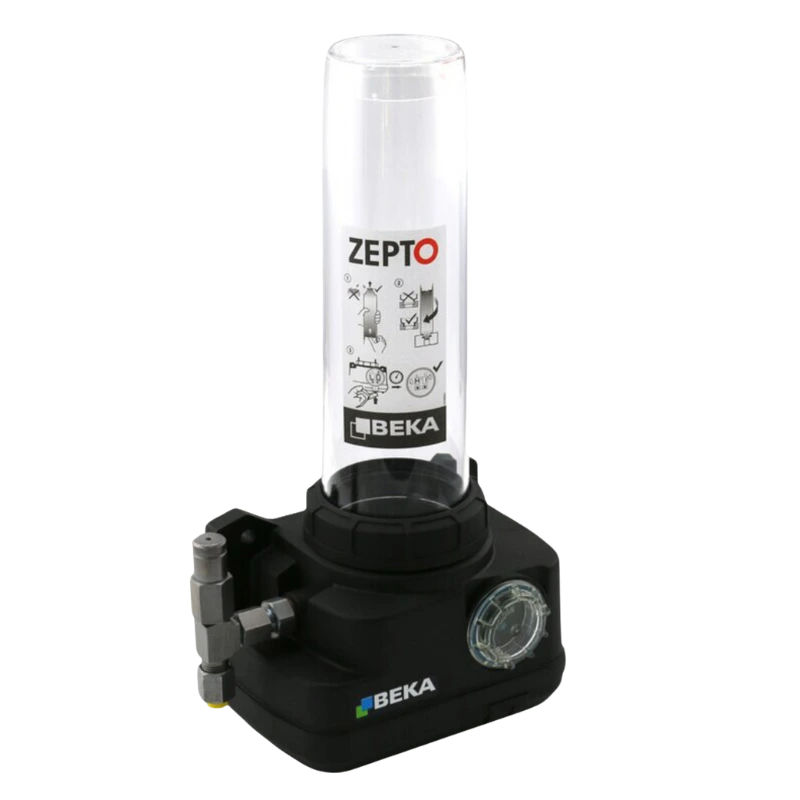

The ZEPTO electric cartridge pump is engineered to supply lubricant in central lubrication systems, such as progressive systems, or to individual lubrication points. It is mainly used for lubricating smaller machines and systems with up to 30 lubrication points. This compact pump features a desmodromic pump element for reliable lubricant delivery. An innovative revolution control mechanism ensures consistent delivery rates regardless of the supply voltage. ZEPTO is compatible with various screw cartridge types available on the market, enabling quick and clean lubricant refills through simple cartridge replacement.


  • Sturdy and compact design
  • Tool-free lubrication cartridge replacement
  • Compatible with a range of screw cartridge types
  • Constructed with high-strength glass fiber plastics to withstand challenging conditions
  • Unique dust tightness (IP6K) and safe cleaning with high pressure/steam jet cleaning (IP9K)


​Download PDF: Manual and Specifications

OVERVIEW OF THE

BEKA ZEPTO PUMP



Working Principles

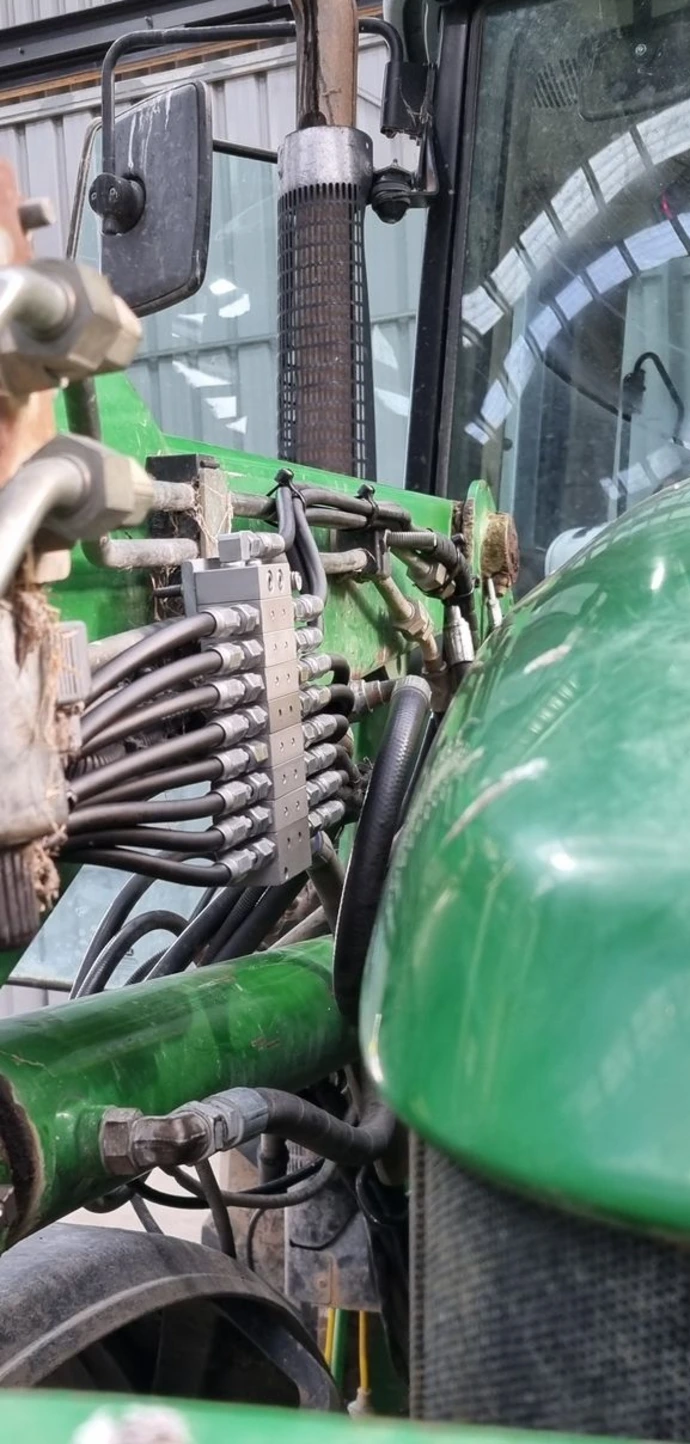

Once the pump is activated, grease is pushed from the cartridge to the distribution block. The metering units on the progressive distributor precisely deliver the grease to the lubrication points.


Technical Information BEKA Zepto Pump


Pump Type

Electric

Supply Voltage

12 or 24v

No. of outputs

1

Maximum operating pressure

290 bar (4200 psi)

Delivery volume

Constant 0,9 cc/min

Grease class

NLGI-000 up to NLGI-2

Reservoir Capacity

Standard cartridges

Compatible cartridges types

S (Lube-Shuttle®), F (SYSTEM REINER) or L (Ritter grease cartridge 400ml) with corresponding adapter

Temperature range

-25 up to +70 C (-13 up to 158 F) depending on lubricant

Protection class

IP6K9K


DOWNLOADS

GENERAL MANUAL AND SPECIFICATIONS




BEKA Zepto General Manual
