Key specifications

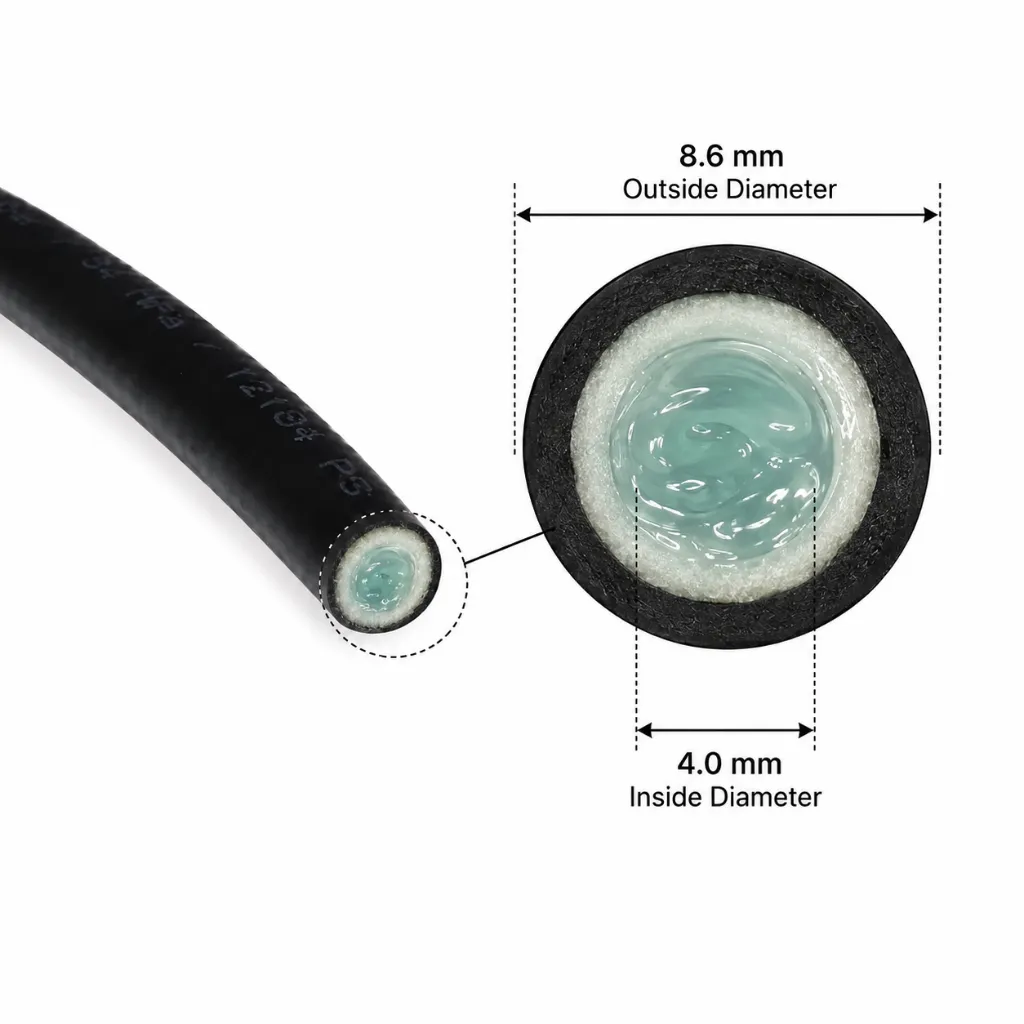

Outside diameter: 8.6 mm
Inside diameter: 4.0 mm
Grease fill: NLGI 2
Pressure: Up to 840 bar at 20°C
Operating temperature: -40°C to 80°C

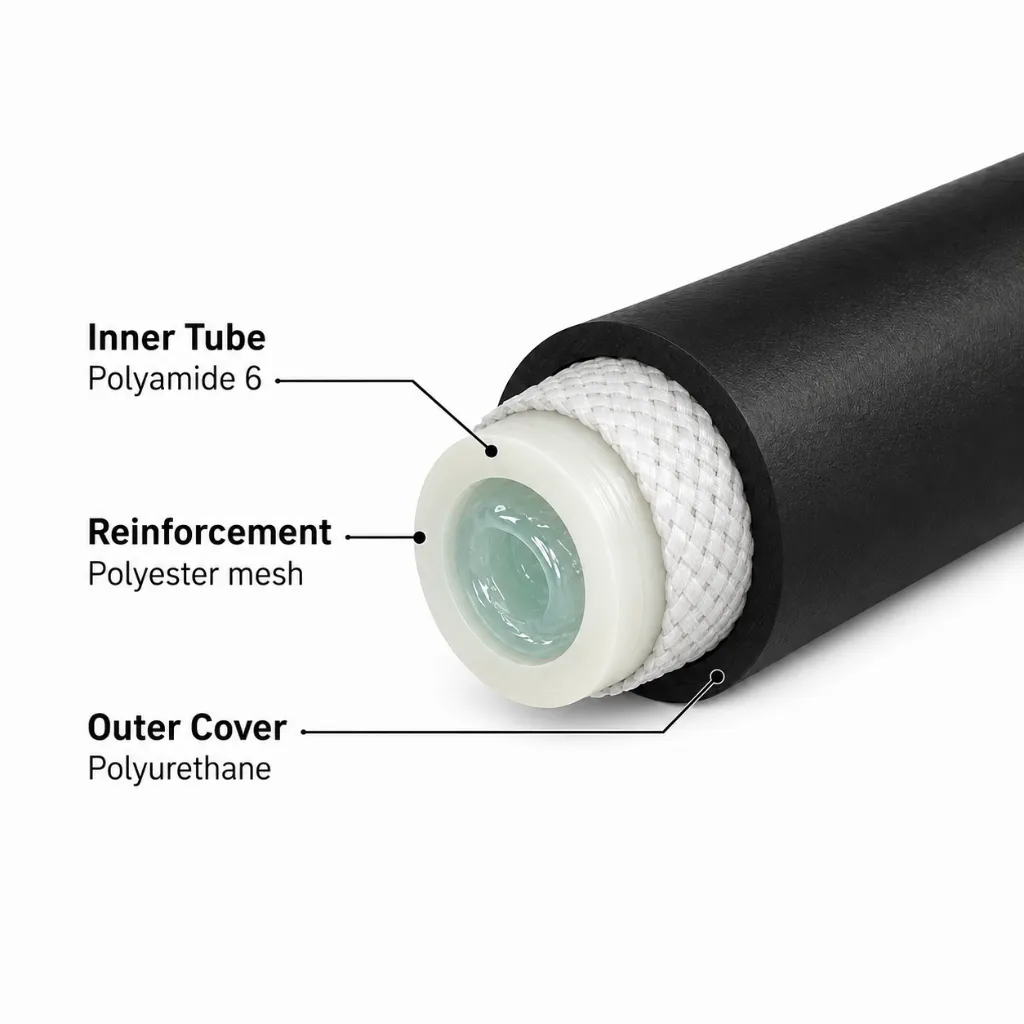

Inner tube: Polyamide 6
Reinforcement: Polyester mesh
Outer cover: Polyurethane
Sold as: Per metre
What is 8.6mm used on?
This high-pressure hose is used to carry grease through remote lines and automatic greasing systems.
Typical applications include:
- Main grease lines from the pump to the first distributor
- Secondary grease lines between distributors
- Repairs or extensions to existing lubrication systems
- Compatible manual lubrication setups like remote lines
- Machinery, trucks, trailers and industrial equipment
The hose is supplied pre-filled with NLGI 2 grease, helping make installation and replacement quicker and cleaner.

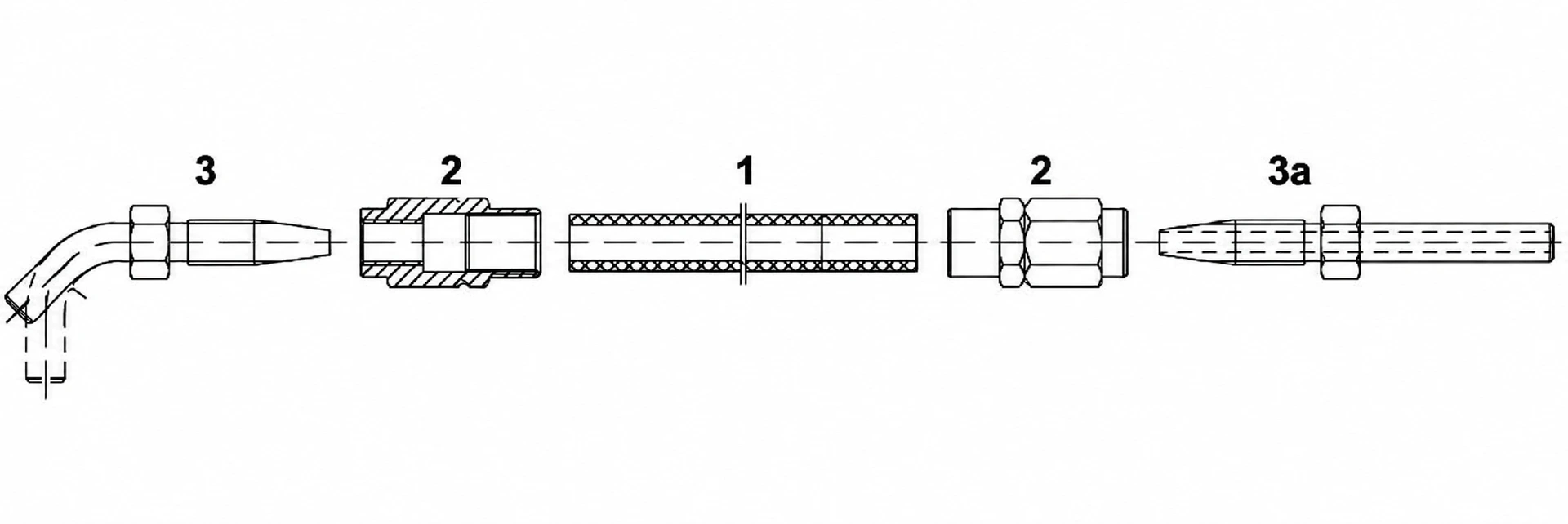

Complete the hose assembly
Choose a threaded sleeve and the hose tail angle you need.
